Rugged Input Devices for Harsh Environments

Discover our latest ruggedized keyboards and joystick controllers, engineered for reliability in industrial, transportation, military, and kiosk applications. Built to withstand water, dust, vibration, and extreme temperatures.

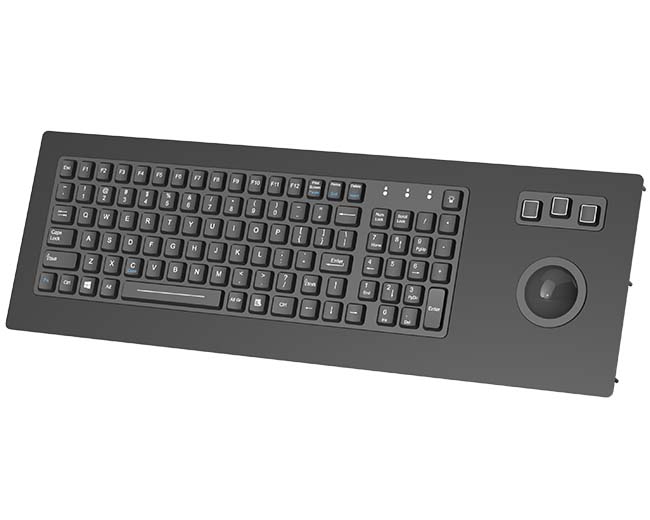

BFRK-01
Rugged 100-Key Keyboard with 50mm Trackball

Full-size rugged backlit keyboard with 100 keys and a large industrial trackball, ideal for heavy-duty equipment or marine use where high-precision mouse control is required.

100 keys + Mouse buttons + 50 mm trackball
Designed to meet MIL-STD-810 / MIL-STD-461
Waterproof (when properly installed)
Panel mounted

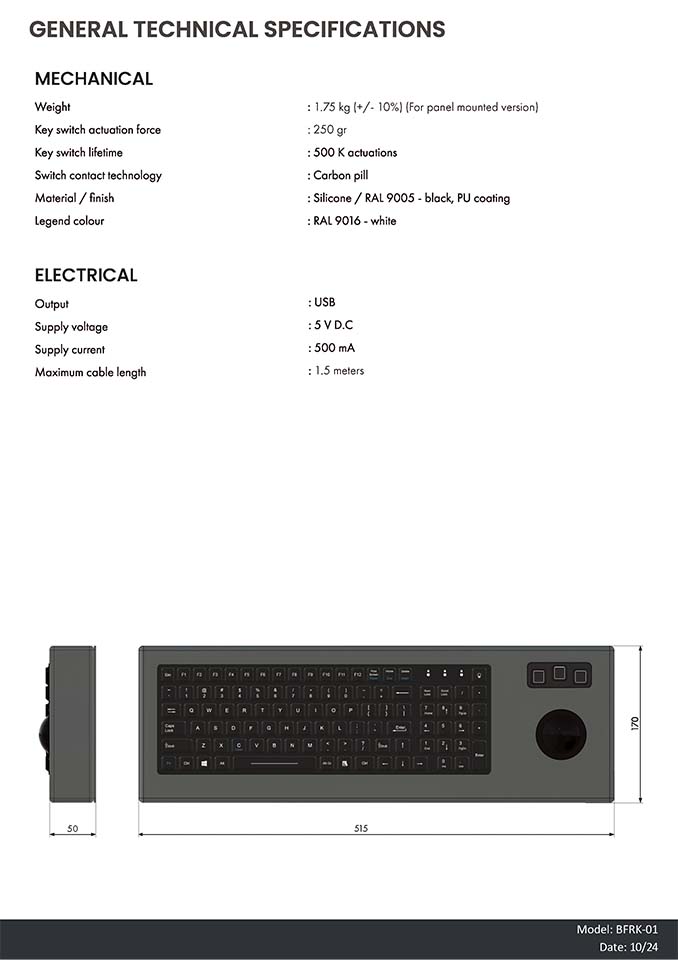

Spec & Drawing

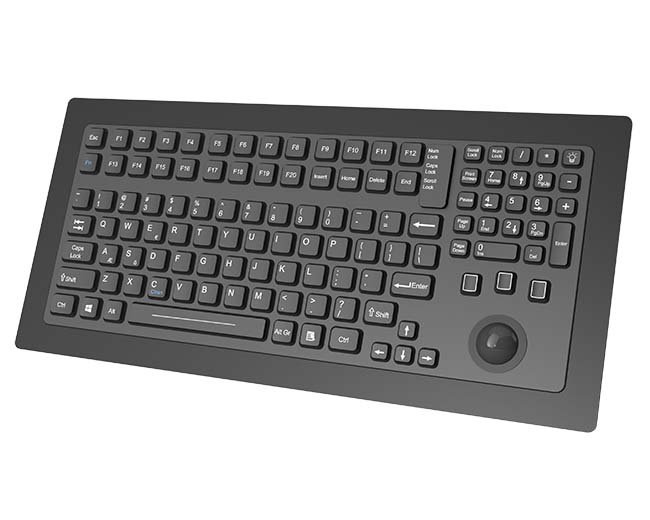

BFRK-02
Rugged 113-Key Keyboard with 25mm Trackball

It features 113 full-travel keys and an integrated 25 mm trackball with mouse buttons, making it ideal for use in transportation systems, kiosks, and military or industrial control panels.

113 keys with numeric keypad and function keys
25 mm trackball with left/right mouse buttons
Manufactured to ISO 9001 quality system
Dimmable backlight

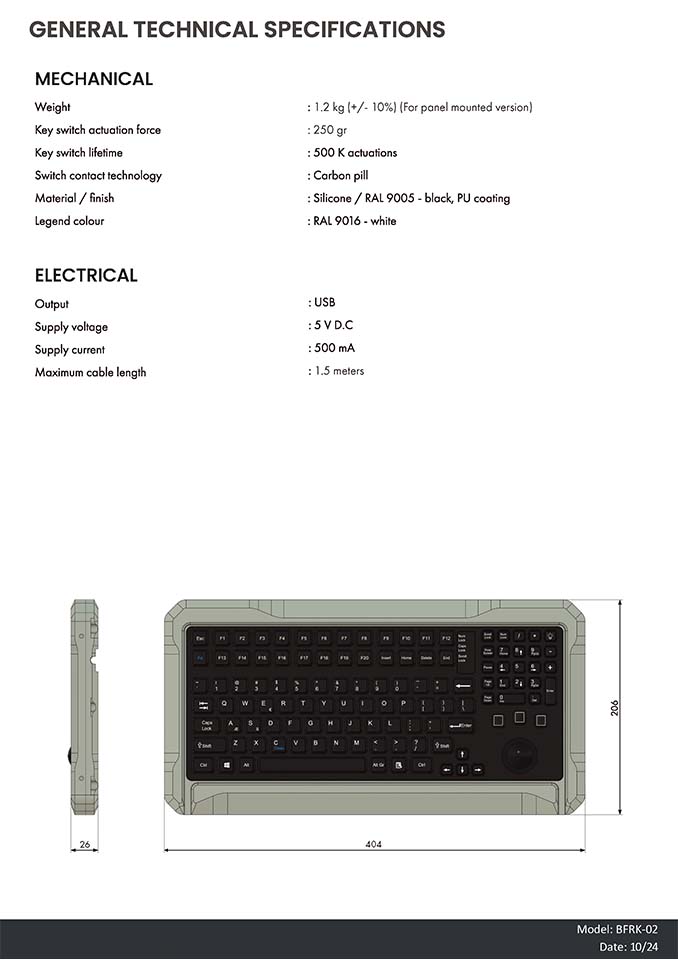

Spec & Drawing

Integrated an ergonomic 50 mm trackball and mouse buttons within an 81-key tactile layout

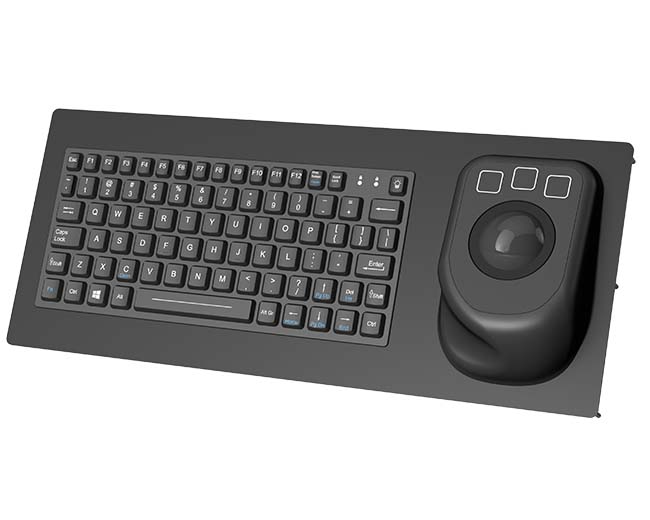

BFRK-03
Rugged 81-Key Keyboard with Ergonomic 50mm Trackball

It integrates an ergonomic 50 mm trackball and mouse buttons within an 81-key tactile layout, making it ideal for applications requiring precise pointer input in harsh conditions, such as industrial, military, marine, and transportation environments.

81 keys + Mouse buttons
Integrated ergonomic 50 mm trackball
Various layouts, colors and connector options
High level of corrosion resistance

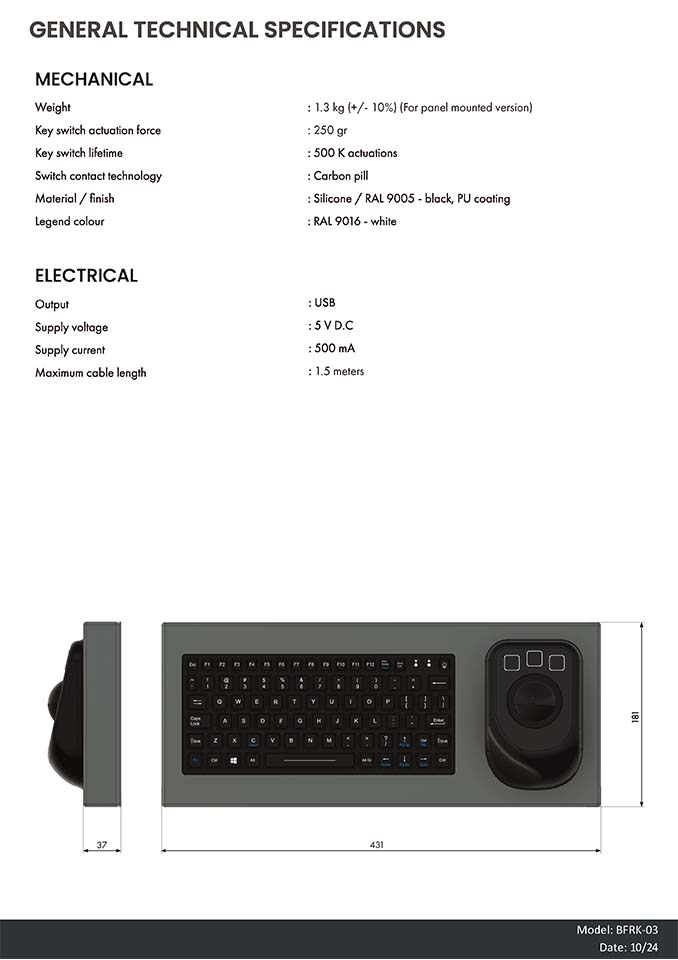

Spec & Drawing

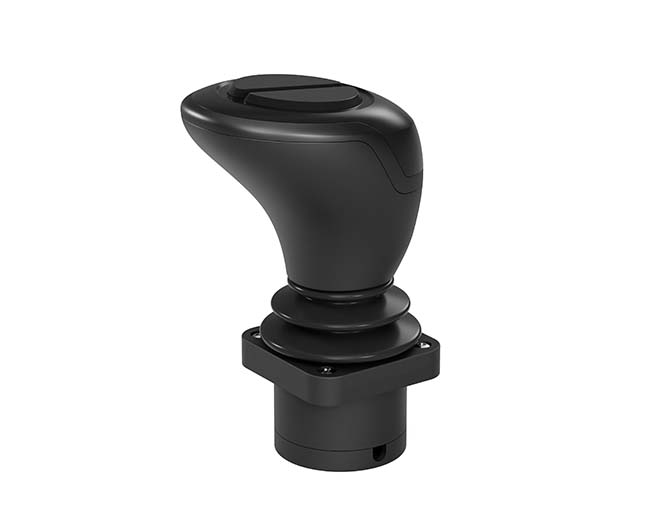

BFJH-01
Hall Effect Industrial Joystick

The BFJH‑01 is a rugged, panel-mounted joystick designed for precise and reliable control in harsh environments. It features Hall Effect sensing technology for accurate, contactless signal detection, ensuring long lifespan and high performance. Ideal applications include UAV/drone ground control stations, robotics, military systems, and industrial equipment.

Designed and tested to MIL-STD-810 and EN 61000 standards
IP 67 water and dust protection (Above panel)
Low operating force
Ergonomic design for long period usage
Long and reliable service life in harsh environments with rugged case

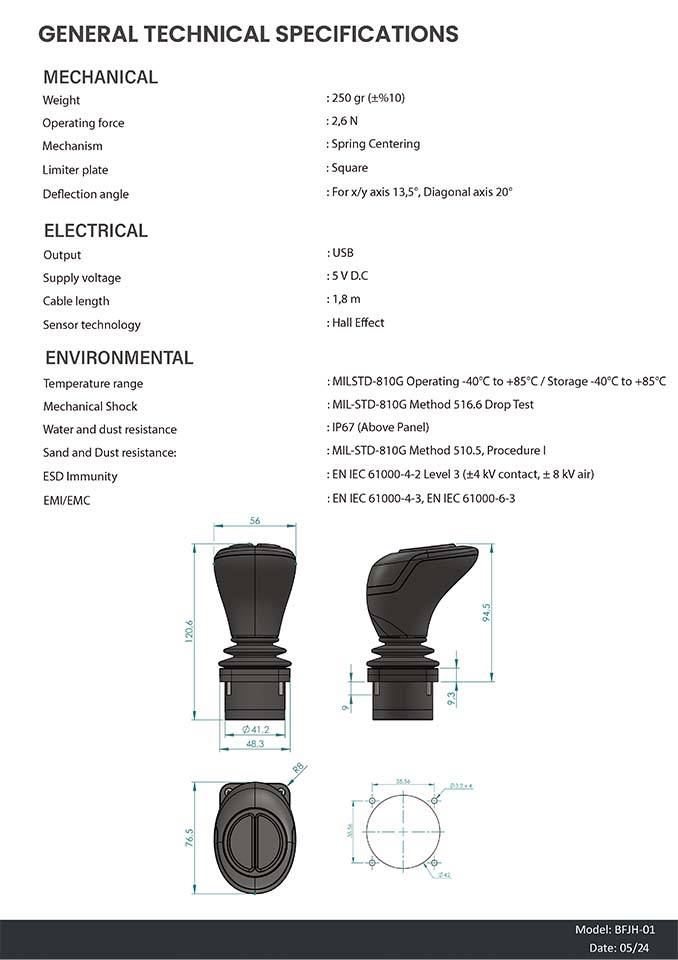

Spec & Drawing
