Dental LCD Monitor

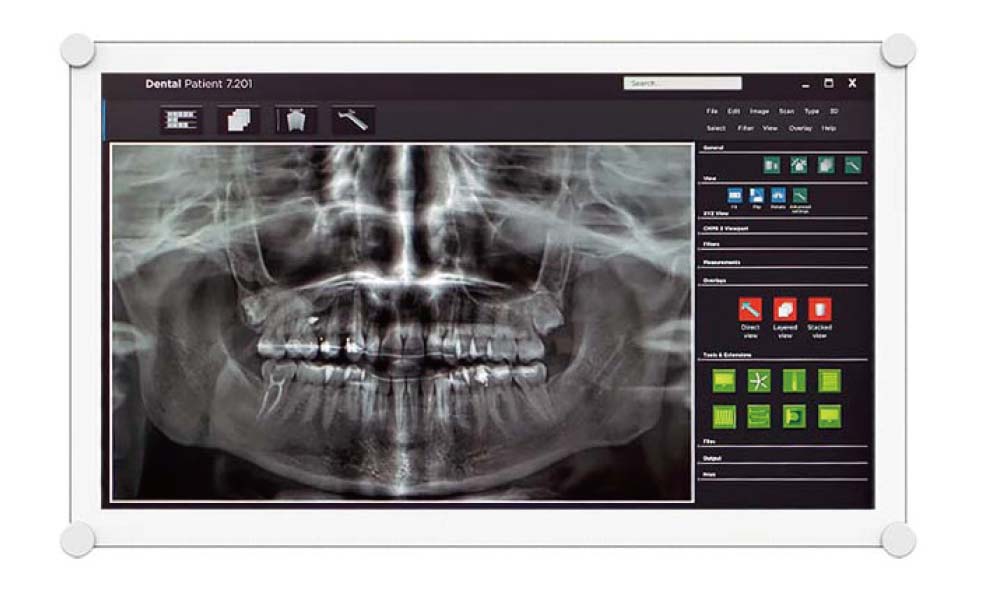

In today’s fast-paced dental environments, a high-performance display is more than just a tool. It is a vital part of accurate diagnostics and effective patient communication. The BF-D2200 Dental LCD Monitor is specifically designed to meet the demands of modern dental practices, combining medical-grade image clarity with a durable, easy-to-clean design. Whether displaying digital X-rays with precision or enhancing patient interaction with vivid visuals, the BF-D2200 delivers reliable performance and exceptional image quality, helping you create a more efficient and patient-centered clinical workflow.

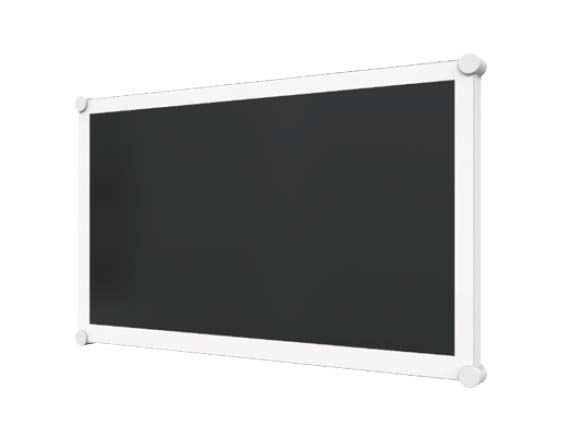

BF-D2200

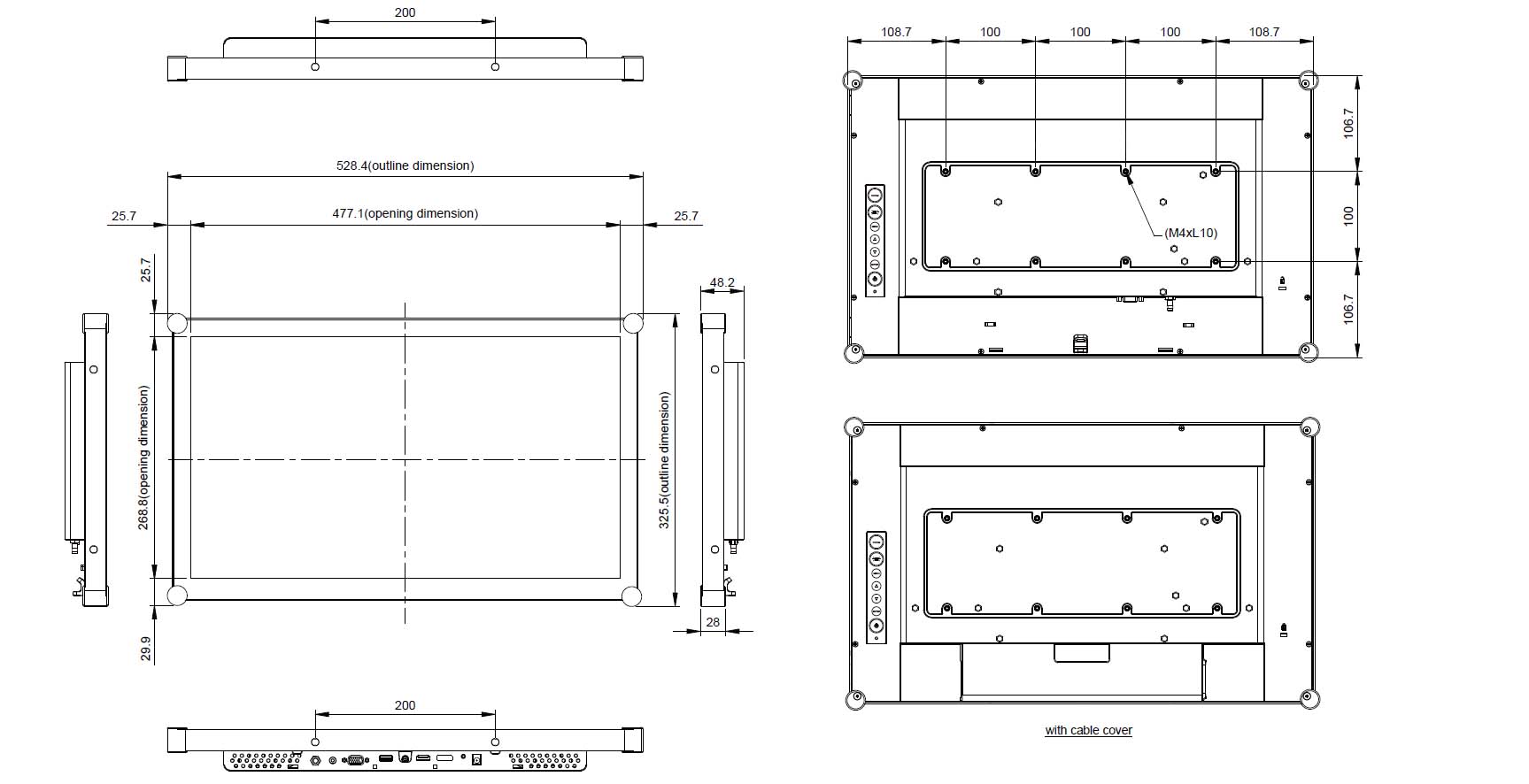

Spec Drawing

Features

Medical Safety Compliance: Fully compliant with IEC/EN 60601-1 and IEC/EN 60601-1-2 standards for both the monitor and its power adaptor, ensuring safe use in medical environments.
Durable Metal Casing: Robust metal housing offers enhanced durability and protection, making it ideal for demanding clinical settings.
IP65 Front Panel Protection: The front panel is IP65-rated for water and dust resistance, supporting reliable operation in hygienic and challenging environments.
DICOM Support: Optimized for medical imaging, the monitor supports DICOM grayscale standards for accurate and consistent image presentation.

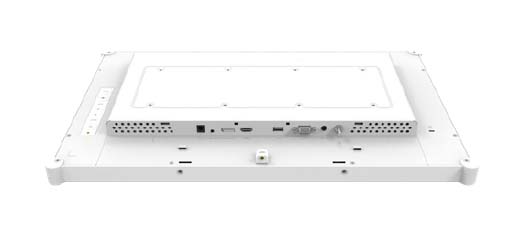

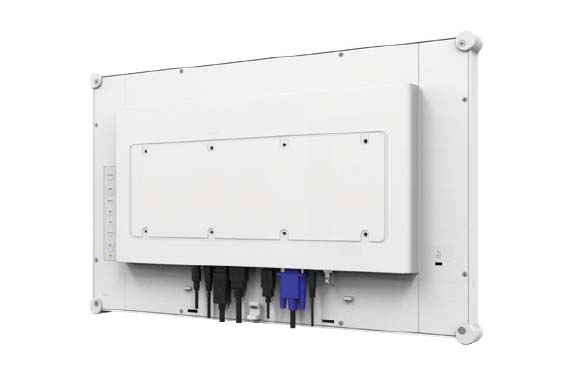

Connectivity Made Simple: With HDMI, VGA, and audio output interfaces, the BF-D2200 easily integrates with your existing dental imaging and computer systems.

Specification

Panel Type	LED-Backlit TFT LCD (IPS Technology)
Panel Size	21.5-inch
Max. Resolution	FHD 1920 x 1080
Pixel Pitch	0.248 mm
Brightness	500 cd/m²
DICOM Brightness	300 cd/m² (Preset)
Contrast Ratio	1000:1
Viewing Angle (H/V)	178°/178°
Display Colour	16.7M (True 8 bits)
Response Time	5 ms
Surface Treatment	Anti-Glare Treatment (Haze 25%), 3H Hard Coating
Frequency (H)	31 kHz ~ 84 kHz
Frequency (V)	56 Hz ~ 75 Hz
DisplayPort	x 1
HDMI	1.4 x 1
VGA	15-Pin D-Sub x 1
USB	2.0 x 1 (Service Port)
Audio In	Stereo Audio Jack (3.5 mm)
Internal Speakers	3W x 2
Power Supply	External
Power Requirements	DC 12V, 5.0A
On Mode	15W (On)
On Mode (Max)	30W
Standby Mode	<0.5W
Off Mode	<0.3W
Glass Thickness	1.8 mm
Glass Reflection Rate	<1%
Glass Transmission Rate	>97%
MOHS Hardness	6
Pencil Hardness	9H
IK Rating	IK07
Operating Temperature	0°C-40°C (32°F-104°F)
Operating Humidity	10%-90% (non-condensing)
Storage Temperature	-20°C to 60°C (-4°F-144°F)
Storage Humidity	5%-95% (non-condensing)

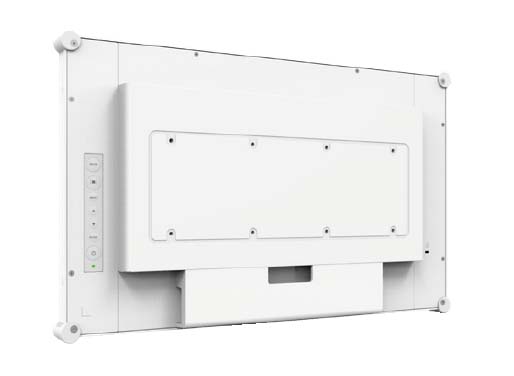

Mounting	VESA FPMPMI (100 x 100 mm & 300 x 100 mm)
Security	Kensington Security Slot
Product dimensions w/o base (W × H × D)	528.4 x 325.5 x 48.2 mm (20.8" x 12.8" x 1.9")
Packaging dimensions (W × H × D)	610.0 x 405.0 x 160.0 mm (24.0" x 15.9" x 6.3")
Product weight w/o base	4.7 kg (10.4 lb)
Packaging weight	6.45 kg (14.2 lb)
Certifications & Compliance	CE, LVD, FCC, ICES 003 Issue7, WEEE, RoHS, REACH, EAC, IEC/EN 60601-1, IEC/EN 60601-1-2
Power Adaptor Certifications	CE, BSMI, CCC, CB, WEEE, cUL, FCC, PSE, IEC/EN 60601-1, IEC/EN 60601-1-2
Supplied Accessories	HDMI Cable, Power Adaptor, Power Cord, Quick Start Guide
