AD Boards

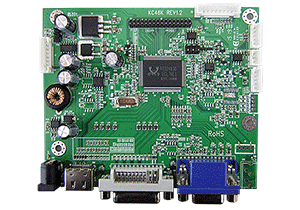

C46KXX83NIH AD Board






Features

  • Compatible with VGA~Full HD (1920 x 1080) resolution TFT LCD panel
  • Supply single pixel (24 bits) or dual pixel (48 bits) digital RGB output
  • Support Vertical refresh rate up to 75Hz for VGA~Full HD of VESA standard timing
  • Support VGA analog standard input signal(15-pin D-Sub connectors)
  • Automatic detection of separate synchronize and composite synchronizes of VGA
  • Support Digital Signal input (DVI)
  • Support Audio Amplifier function
  • Comply with HDCP
  • DC 12V input or matching P/I power board (option)
  • RoHS compliant



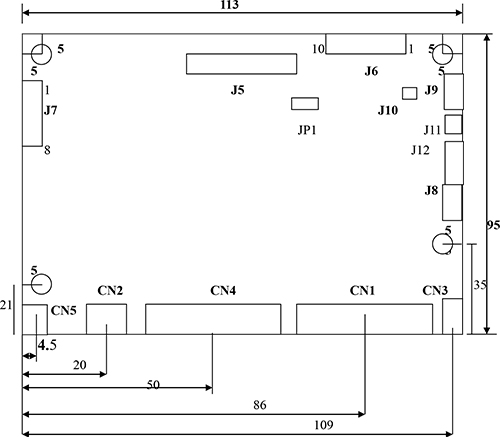

Connector List

Mode Resolution H Freq. (kHz) V Freq. (Hz)
1 640*350@70 31.469 70.087
2 640*400@70 31.469 70.087
3 640*480@60 31.469 59.940
4 640*480@72 37.861 72.809
5 640*480@75 37.500 75.000
6 720*400@70 31.469 70.087
7 800*600@56 35.156 56.250
8 800*600@60 37.879 60.317
9 800*600@72 48.077 72.188
10 800*600@75 46.875 75.000
11 1024*768@60 48.363 60.004
12 1024*768@70 56.476 70.069
13 1024*768@72 58.038 71.918
14 1024*768@75 60.023 75.029
15 1280*1024@60 63.980 60.000
16 1280*1024@70 74.882 69.853
17 1280*1024@75 79.976 75.025
18 1360*768@60 47.72 59.799
19 1360*768@75 60.288 74.891
20 1400*1050@60 65.3 60.000
21 1400*1050@75 82.3 75
22 1440*900@60 59.9 75
23 1440*900@75 75 75
24 1680*1050@60 65.3 60
25 1920*1080@60 66.6 60
