Medical LCD Monitor

In today’s fast-paced medical environments, a high-performance display is more than just a tool. It is a vital part of accurate diagnostics and effective patient communication. The BF-M1560 Medical LCD Monitor is specifically designed to meet the demands of modern dental practices, combining medical-grade image clarity with a durable, easy-to-clean design. Whether displaying digital X-rays with precision or enhancing patient interaction with vivid visuals, the BF-M1560 delivers reliable performance and exceptional image quality, helping you create a more efficient and patient-centered clinical workflow.

BF-M1560

Features

Medical Safety Compliance: Fully compliant with IEC/EN 60601-1 and IEC/EN 60601-1-2 standards for both the monitor and its power adaptor, ensuring safe use in medical environments.
Durable Metal Casing: Robust metal housing offers enhanced durability and protection, making it ideal for demanding clinical settings.
IP65 Front Panel Protection: The front panel is IP65-rated for water and dust resistance, supporting reliable operation in hygienic and challenging environments.
DICOM Support: Optimized for medical imaging, the monitor supports DICOM grayscale standards for accurate and consistent image presentation.

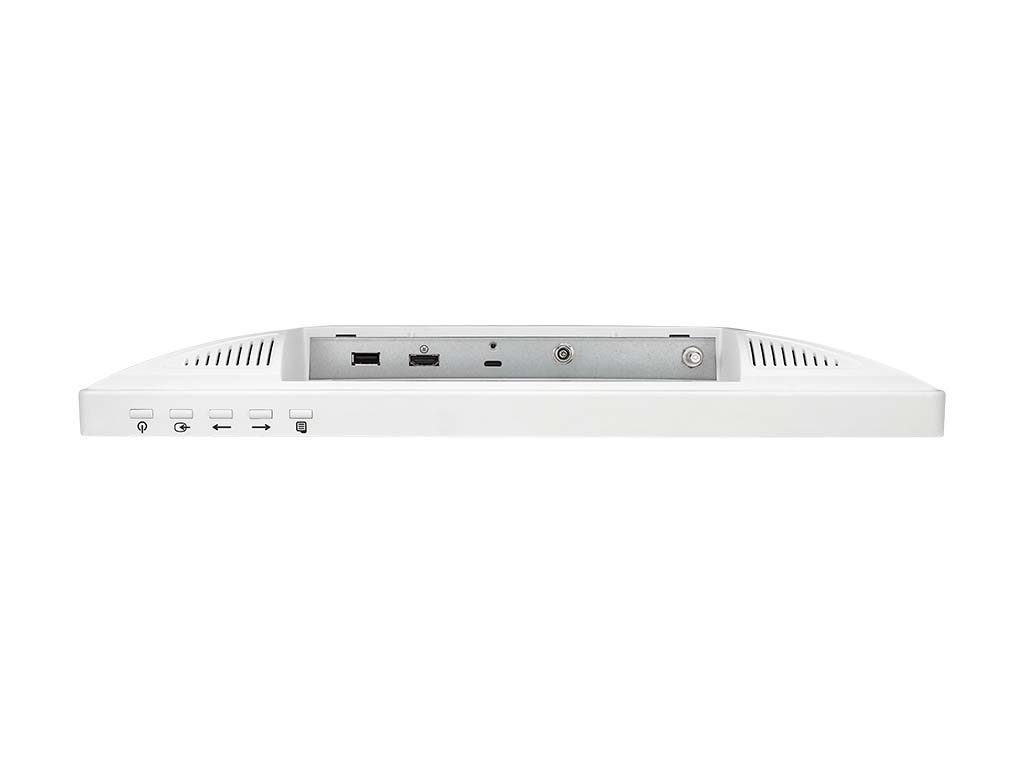

Connectivity Made Simple: With HDMI, USB (type C) input, user-friendly OSD-Menu, and DDC2B Plug & Play, the BF-M1560 easily integrates with your existing medical imaging and computer systems.

Specification

Model	BF-M1560
Panel Size	15.6-inch
Max. Resolution	1920 × 1080 (Non-Interlaced)
Pixel Pitch	0.179 mm x 0.179 mm
Brightness	500 cd/m²
Contrast Ratio	1000:1
Viewing Angle (H/V)	178°/178°
Display Color	16.7M Colors
Response Time	25 ms (typ.)
Frequency (H)	30 kHz ~ 80 kHz
Frequency (V)	56 Hz ~ 75 Hz
Dimensions (with carton)	508 mm ×196 mm ×394 mm (W×D×H)
Plug & Play	DDC 1/2B
Weight	N.W.: 3.7kg G.W.: 5.0kg
Operating Temperature	5°C-40°C
Non-operating Temperature	-10°C-60°C
Operating Humidity	20%-80%
Storage Humidity	10%-90%
Operating Pressure	700-1060hPa
Storage Pressure	700-1060hPa
Operating Altitude	0-3000m
LCD Panel Life Time	50000 hrs

*Specifications are subject to change without notice.
