| Model No. | OFD-15 | OFD-17 | OFD-19 |
|---|---|---|---|
| Screen Diagonal | 15 inch | 17 inch | 19 inch |
| Max Resolutions | XGA (1024 X 768) | SXGA (1280 X 1024) | SXGA (1280 X 1024) |
| Active Area (mm) | 304.128 (H) x 228.096 (V) | 337.92 (H) x 270.336 (V) | 376.32 (H) x 301.056 (V) |
| Support Color | 262K(6-bit) / 16.2M(8-bit) colors | 16.7M colors (RGB 6-bit + Hi_FRC ) colors | 16.7M colors (RGB 6-bit + Hi_FRC ) colors |
| Pixel Pitch | 0.297 (H) x 0.297 (V) mm | 0.264 (H) x 0.264 (V) mm | 0.294 (H) x 0.294 (V) mm |
| Luminance (cd/m2) | 1,000 nits | 1,000 nits | 1,500 nits |
| Contrast Ratio | 2000 : 1 (Typical ) | 2000 : 1 (Typical ) | 3000 : 1 |
| Scan frequency | Horizontal: 30 to 80 KHz Vertical : 50 to 75 Hz |
Horizontal: 30 to 80 KHz Vertical : 50 to 75 Hz |
Horizontal: 30 to 80 KHz Vertical : 50 to 75 Hz |
| Viewing Angle | 160°/140° (H/V) | 170°/165° (H/V) | 160°/160° (H/V) |
| Response Time | 8 ms (tf/tr) | 5 ms (tf/tr) | 5 ms (tf/tr) |
| Input Signal | R/G/B Analog | R/G/B Analog | R/G/B Analog |
| Signal type | 15 Pin D-sub VGA only (V) | 15 Pin D-sub VGA only | 15 Pin D-sub VGA only |
| 15 Pin D-sub VGA only | DDC 2B | DDC 2B | DDC 2B |
| OSD Controls/Button | Power, Auto, Menu / Enter, Up, Down | Power, Auto, Menu / Enter, Up, Down | Power, Auto, Menu / Enter, Up, Down |
| Power Consumption | 30 W (Max.) /Standby under 2W | 35 W (Max.) /Standby under 2W | 30 W (Max.) /Standby under 2W |
| Power Management | VESA DPMS | VESA DPMS | VESA DPMS |
| Power Supply | Input : DC 12V/3.0A | Input : DC 12V/4.0A or DC 24V(Options) | Input : DC 12V/4.0A or DC 24V(Options) |
| Signal Options | VGA + DVI or VGA + Video + S-Video or VGA+HDMI Input | VGA + DVI or VGA + Video + S-Video or VGA+HDMI Input | VGA + DVI + HDMI / VGA + Video + S-Video Composite Input |
| Touch Screen Options | 5W Resistive Antiglare / Surface Capacitive | 5W Resistive Antiglare / Surface Capacitive | 5W Resistive Antiglare / Surface Capacitive |
| Mechanical | |||
| Construction | Metal | Aluminum & Varnish | Aluminum & Varnish |
| Front Bezel | Optional | Optional | Optional |
| Dimensions | 388.7(W) x 300 (H) x 53 (D) (mm) | 482 (W) X 308 (H) x 54 (D) (mm) | 482 (W) X 308 (H) x 54 (D) (mm) |
| Mounting Options | Rear Mount, Wall Mount | Panel Mount, Rear Mount, Wall Mount | Panel Mount, Rear Mount, Wall Mount |
| Weight | 4 KGs | 5.5 KGs | 5.5 KGs |
| Environmental | |||
| Operating Temperature | -20°C~70°C | -20°C~70°C | 0°C~50°C |
| Storage Temperature | -30°C~85°C | -30°C~80°C | -20°C~60°C |
| EMC Approved | CE , FCC | CE , FCC | CE , FCC |
| Relative Humidity | Less than 85% | Less than 85% | Less than 85% |
| RoHS Compliance | RoHS Compliance | RoHS Compliance | RoHS Compliance |

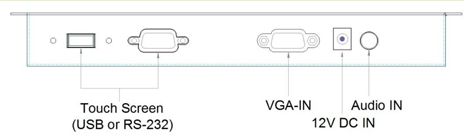

| Drawing | Dimensions I/O |
- | - |
